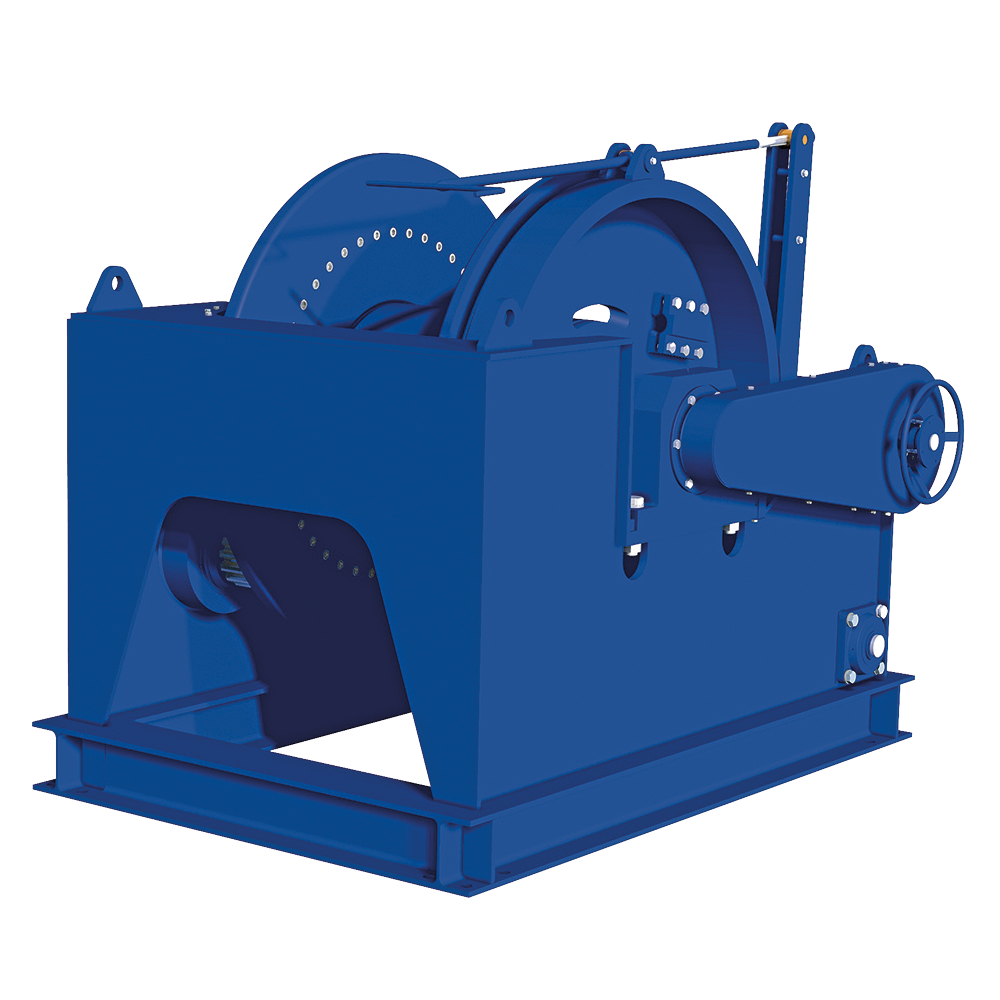

This standard range of the SRM type mooring/anchor winches is designed for application on jack-up rigs, barges and other offshore or marine units. These standard winches can be fi tted with several options such as free spooling clutches and spooling gears. Also a range of mooring accessories can be offered with these winches such as fairleads, sheaves, wire rope and load measuring equipment. Winches will be subject to our standard internal test procedure, which can be witnessed by the client and/or third party.

Standard features

• Heavy duty slew ring
• Heavy duty planetary gearboxes fi tted with pinions - SRM E; IP 56 TENV seawater-resistant 400-440 V AC / 3-phases / 50 - 60 Hz braked motors.
• SRM H; radial piston type hydraulic motors complete with brake valve
• Steel drum with cable fixing point at flange - Band brake (manual)
• Two drum supports
• Lifting lugs
• Three layer 2-component conservation according ISO 12944 category C4-High, colour RAL 1023
• FEM / ISO class: T3-L3-M4

Available mooring equipment

• Horizontal deck sheaves without or with load pins
• Swivel fairleads
• 4, 6, 7 or 10 roller fairleads
• Deck bollards and chocks

Mechanical options

• Automatic band brakes
• Alternative speeds
• Alternative supply voltages
• Drum guards
• Spooling gears
• Grooved drums
• Alternative drum dimensions / rope lengths / rope diameters
• Warping head
• Wire rope

Control options

• Control box IP 55 with push-buttons and emergency stop
• Control box IP 66 with low voltage IP 65 remote control
• Load limiter
• Frequency inverter for variable speed control
• Load and/or line monitoring
• Proportional local or remote control valve (pneumatic or hydraulic)
